SPECIFICATION


FAN

Model Orkaan RGB
Color White
Input Power 2.4W
Dimension 120 x 120 x 25 mm
Weight 120g
Voltage 12V
Current 0.2A
Fan Speed 1300±10% RPM
Air Flow 41.4 CFM ±10%
Air Pressure 1.21mm H2O
Bearing Type Hydraulic
Noise Level 21dB(A)
Connectors 3 pin (2510) + 4 pin (2.54)
LED Input Power 0.4 – 1.5W
LED Current 0.043 – 1.5A

LED STRIPS

Chip 5050
Strip Length 300mm
Extended Cable Length 500mm
LED Light Quantity 18 pcs
LED Rated Power 90mW
LED Peak Current 100mA
LED Rated Voltage DC 12V
Working Temperature -20 ~ +60 °C
Storage Temperature -35 ~ +80 °C
Weight 15g

REMOTE

Working Temperature -20 – 60 °C
Voltage Supply DC 12V
Output Channels 4
Connecting Mode Common Anode
Dimension (L x W x H) 85 x 50 x 6 mm
N.W 50g
G.W 71g
Static Power Consumption < 1W
Output Current < 2A (Every Channel)
Output Power < 72W

WHAT’S INSIDE !

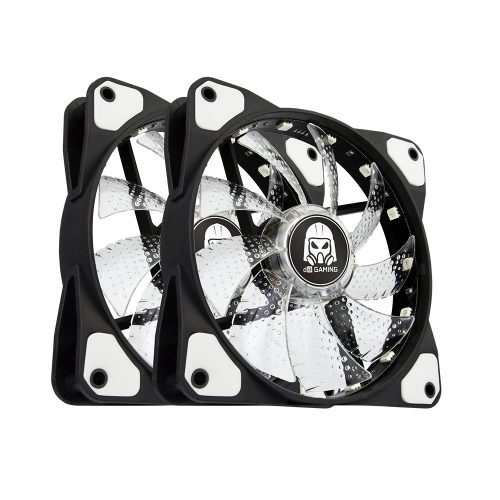

Fan x2

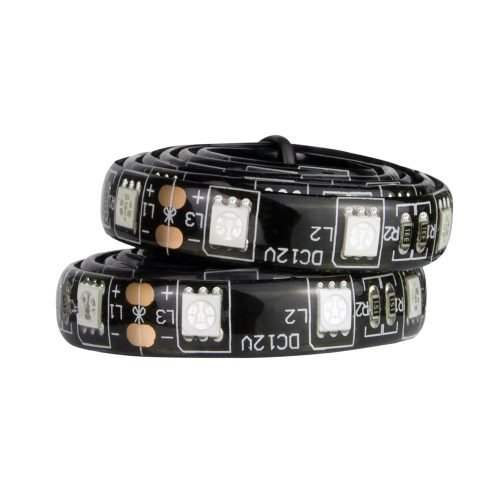

LED Strips x2
Remote Control x1

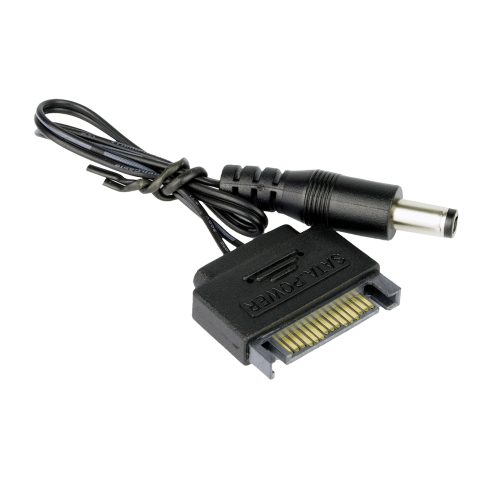

Sata Power Connection x1
IR Controller x1
