SPECIFICATION
|
|
|---|---|
| CPU SUPPORT | Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151) • Supports CPU up to 95W • Supports Intel® Turbo Boost 2.0 Technology |
| POWER DESIGN | CPU Power: 6 Phase Memory Power: 2 Phase |
| CHIPSET | INTEL H310 |
| DISPLAY | Integrated Graphics Dependent on installed CPU • 1 × HDMI, max resolution up to 4K × 2K (4096×2160) @ 30Hz • 1 × D-Sub, max resolution up to 1920×1200 @ 60Hz |
| MEMORY | 2 × SO-DIMM DDR4 Support Dual Channel 1866 / 2133 / 2400 MHz DDR4 1.2V Max Support up to 32GB |
| BIOS | AMI UEFI BIOS |
| EXPANSION SLOTS | 1 × M.2 Socket (M Key) Supports 2230 / 2242 / 2260 / 2280 M.2 SATA3 6.0 Gb/s module |
| STORAGE | 3 × SATA3 6.0 Gb/s Connectors Support NCQ, AHCI and Hot Plug |
| NETWORKING | 1 × Realtek RTL8105E 100M LAN Controller |

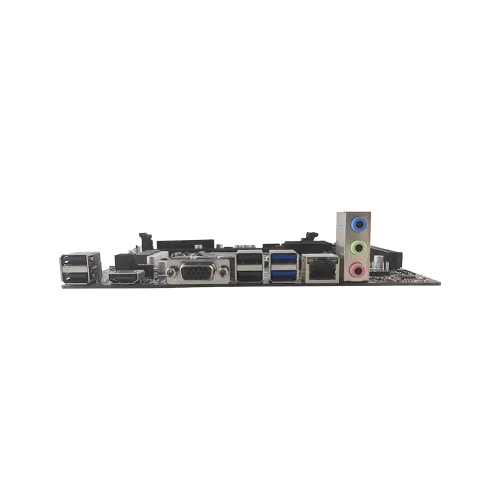

| REAR PORTS | • 2 × USB 2.0 Mouse / Keyboard Ports • 1 × HDMI Port • 1 × VGA Port • 2 × USB 2.0 Ports (ESD Protection) • 2 × USB 3.1 Gen1 Ports (ESD Protection) • 1 × RJ-45 LAN Port with LED (ACT/LINK & SPEED) • HD Audio Jacks: Line-in / Front Speaker / Microphone |
| AUDIO | Realtek ALC662 Codec |
| FAN HEADERS | 1 × 4-pin CPU FAN 1 × 3-pin SYSTEM FAN |
| EXCLUSIVE FEATURES | • 1 × Chassis Intrusion & Speaker Header • 1 × CPU Fan Connector (4-pin) • 1 × Chassis / Water Pump Fan Connector (4-pin, Smart Fan Control) • 1 × 24-pin ATX Power Connector • 1 × 8-pin 12V Power Connector • 1 × Front Panel Audio Connector • 2 × USB 2.0 Headers (support 4 USB 2.0 ports, ESD Protection) • 1 × USB 3.1 Gen1 Header (support 2 ports, ESD Protection) |
| OPERATING SYSTEM | Linux, Ubuntu, Windows 10 / 11 |
| FORM FACTOR | ATX Form Factor: 170 mm × 190 mm |
