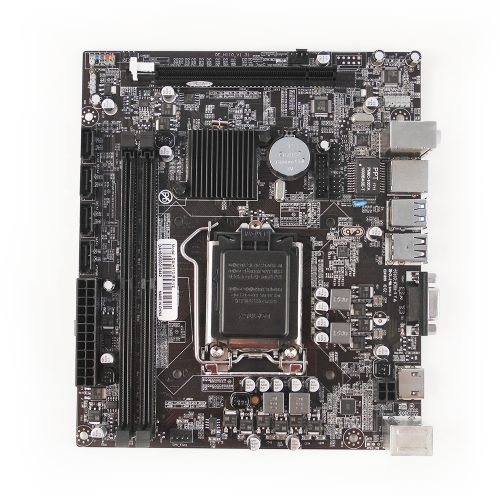

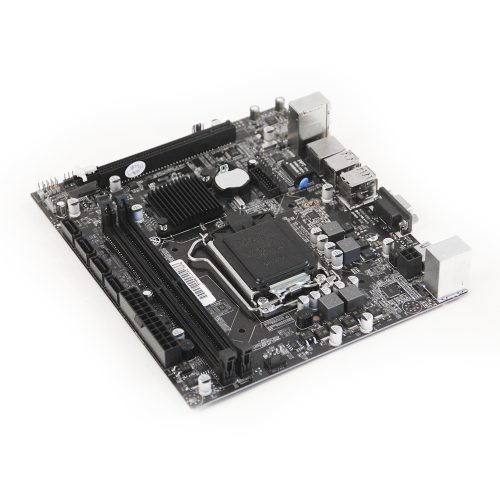

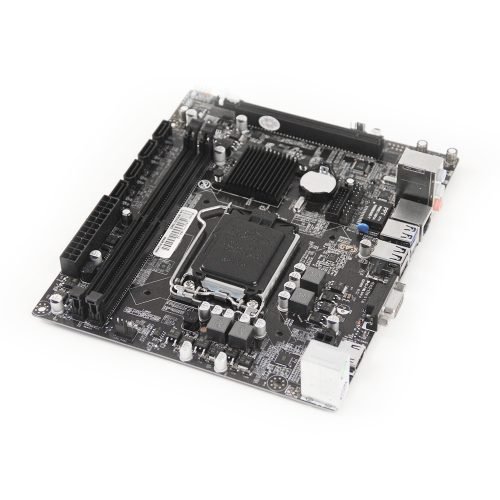

SPECIFICATION
|
| Processor |
Intel ® Socket 1151 for 6th Generation Core™ i7 / i5 / i3 processors |
| Chipset |
Intel® H110 |
| Memory |
DDR4 2133 MHz |
| Dimm |
2 x Memory Slots |
| Onboards Graphics |
Integrated Graphics Processor Intel® HD Graphics support |
| LAN |
On board Realtek ® RTL8105E 1000 Mbps adaptive network card interface |
| Audio |
Chip Integrated by Realtek 661 on board, Supports 6-Channel audio out |
| Slot |
1 x PCI Express x16 Slot |
| SATA |
4 x SATA port |
|
|
| On Board Pinheaders / Connectors |
2 x USB 2.0 pinheader supports additional 4 USB 2.0 ports |
|
1 x USB 3.0 pinheader supports additional 2 USB 2.0 ports |
|
1 x Front Panel Audio pinheader |
| Form Factor |
Micro ATX (19.7 x 17 cm) |

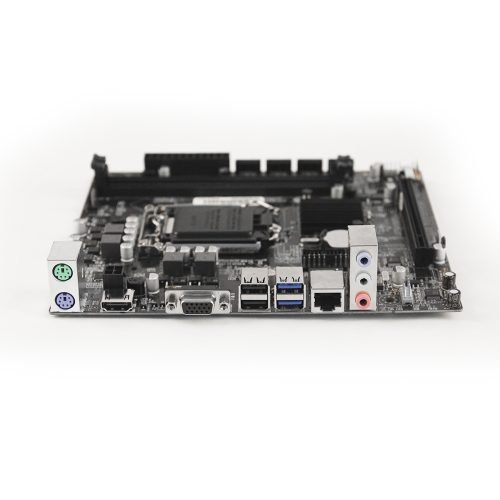

| Back I/O Ports |
1 x PS/2 Mouse port |
|
1 x PS/2 Keyboard port |
|
1 x VGA port |
|
1 x HDMI port |
|
2 x USB 2.0 port |
|
1 x LAN jack |
|
3 x Audio Jack |
| Accessories |
1 x Driver CD |
|
1 x User Manual / Warranty |
|
1 x I/O Backboard |
|
1 x SATA Cable |
