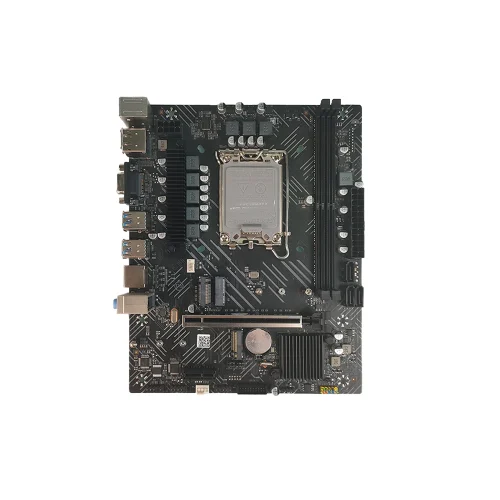

SPECIFICATION
|
| MODEL |
B760M PRO5 |
| CPU |
Intel® Socket LGA 1700 for Intel® Core™ 14th, 13th, & 12th Gen, Pentium® Gold, & Celeron® Processors |
| CHIPSET |
Intel® B760 single chip architecture |
| MEMORY |
• 2 x DIMM slots, max. 128GB, DDR5 |
|
• Support Max. 6800MHz |
|
• Dual Channel Memory Architecture |
| GRAPHICS |
• 1 x DisplayPort** |
| GRAPHICS |
• 1 x VGA port |
|
• 1 x HDMI® port*** |
|
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates |
|
**Supports Max. 4K@60Hz as specified in DisplayPort 1.4 |
|
***Supports 4K@60Hz as specified in HDMI 2.1 |
| EXPANSION SLOTS |
• 1 x PCIe 3.0 x1 slot |
|
• 1 x PCIe 4.0 x16 slot |
| STORAGE |
• 3 x SATAIII Connector (6Gb/s) |
|
• 1 x M.2 Support Gen4 x 4 (NVMe Only) |
|
• 1 x M.2 Support Gen4 x 4 (NVMe/NGFF) |
| LAN |
• REALTEK 8111H |
|
• 10 / 100 / 1000 Mb/s auto negotiation, Half/Full duplex capability |
| USB |
• 4 x USB Gen 3.2 |
|
• 2 x USB 3.0 ports |
|
• 2 x USB 2.0 ports |
| AUDIO |
• ALC897 |
|
• 7.1 Channel, High Definition Audio |
| INTERNAL I/O PORTS |
• 3 x SATAIII Connector (6Gb/s) |
|
• 1 x USB 2.0 Headers |
|
• 1 x USB 3.0 Header |
|
• 1 x 8-Pin Power Connector |
|
• 1 x 24-Pin Power Connector |
|
• 1 x CPU Fan Connector |
|
• 1 x System Fan Connector |
|
• 1 x Front Panel Header |
|
• 1 x Front Audio Header |
|
• 1 x Internal Stereo Speaker Header |
|
• 1 x Clear CMOS Header |
|
• 1 x COM Port Header |

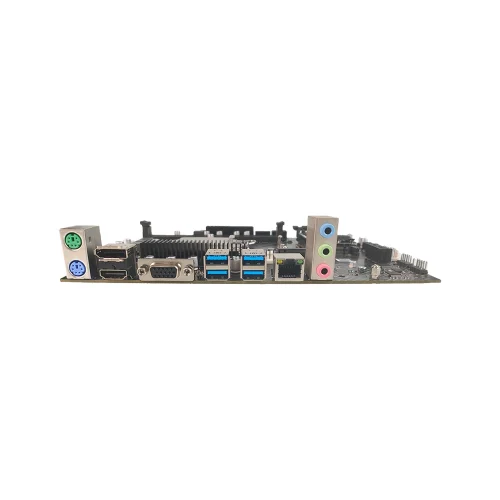

| BACK PANEL I/O PORTS |
• 1 X PS/2 (keyboard/mouse) |
|
• 1 x HDMI |
|
• 1 x DP |
|
• 1 x VGA |
|
• 2 x USB 3.2 (Gen1) ports 5GB/s |
|
• 2 x USB 3.2 (Gen2) ports 10GB/s |
|
• 1 x LAN |
|
• 3 x Audio Jack |
| OPERATING SYSTEM |
Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR |
Micro ATX Form Factor: 180mm x 220mm (W x L) |
