SPECIFICATION
|

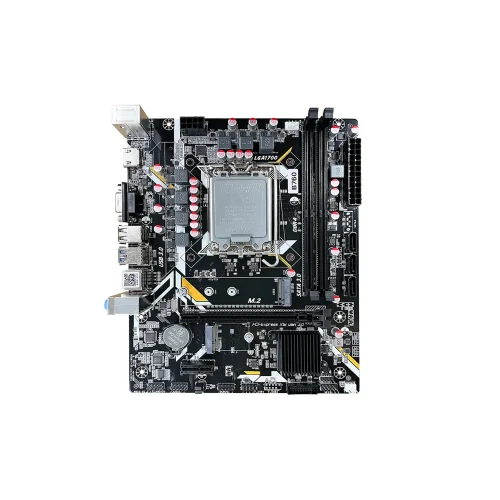

| MODEL |
B760M PRO4 |
| CPU |
Intel® Socket LGA 1700 for Intel® Core™ 14th, 13th, & 12th Gen, Pentium® Gold, & Celeron® Processors |
| CHIPSET |
Intel® B760 single chip architecture |
| MEMORY |
• 2 x DIMM slots, max. 64GB, DDR4 |
|
• Support 2133 / 2400 / 2666 / 2933 / 3200 |
|
• Dual Channel Memory Architecture |
| GRAPHICS |
• 1 x VGA port |
|
• 1 x HDMI® port*** |
|
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates |
|
***Supports 4K@60Hz as specified in HDMI 2.1 |
| EXPANSION SLOTS |
• 1 x PCIe x1 slot |
|
• 1 x PCIe x16 slot |
| STORAGE |
• 3 x SATAIII Connector (6Gb/s) |
|
• 1 x M.2 SSD, Support type 2240 / 2260 / 2280 module |
|
• 1 x M.2 WIFI Port |
| LAN |
• REALTEK 8111H10/100Mb LAN on board |
|
• 10 / 100 / 1000 Mb/s auto negotiation, Half/Full duplex capability |
| USB |
• 2 x USB Gen 3.2 (Gen1 / Gen2) ports |
|
• 2 x USB 2.0 ports |
| AUDIO |
• ALC897 |
|
• 7.1 Channel, High Definition Audio |
| INTERNAL I/O PORTS |
• 3 x SATAIII Connector (6Gb/s) |
|
• 1 x USB 2.0 Headers |
|
• 1 x USB 3.0 Header |
|
• 1 x 8-Pin Power Connector |
|
• 1 x 24-Pin Power Connector |
|
• 1 x CPU Fan Connector |
|
• 1 x Front Panel Header |
|
• 1 x Front Audio Header |
|
• 1 x Internal Stereo Speaker Header |
|
• 1 x Clear CMOS Header |
|
• 1 x COM Port Header |

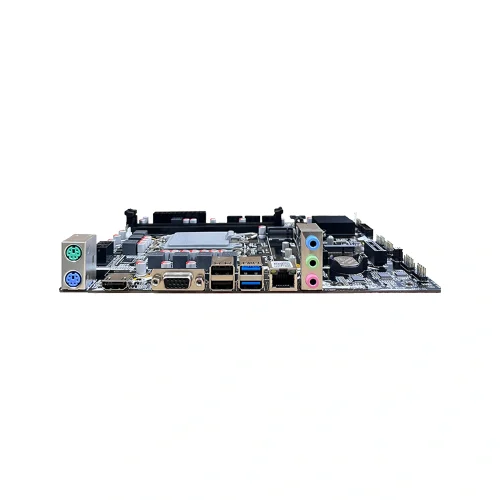

| BACK PANEL I/O PORTS |
• 1 X PS/2 (keyboard/mouse) |
|
• 1 x VGA |
|
• 2 x USB 2.0 |
|
• 2 x USB 3.2 (Gen2) |
|
• 1 x LAN |
|
• 2 x USB 2.0 |
|
• 3 x Audio Jack |
| OPERATING SYSTEM |
Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR |
Micro ATX Form Factor: 180mm x 225mm (W x L) |
