SPECIFICATION
|
|
|---|---|
| MODEL | B650M |
| CPU | Support AMD AM5 Ryzen 7000/8000 series processor |
| CHIPSET | AMD B650 chipset |
| MEMORY | 2 × DDR5, support 4800~6000+ MHz, max support up to 64GB |
| STORAGE | 1 × M.2, 4 × SATA3.0 |
| GRAPHICS | • 1 × PCI Express x16 • 1 × PCI Express x1 • Display: 1 × DP, 1 × HDMI, 1 × VGA |
| USB | Total support: 5 × USB 3.2, 7 × USB 2.0 |
| AUDIO | Realtek HD audio Codec onboard |
| LAN | 1 × Realtek 1000M LAN 1 × M.2 WIFI (compatible PCIe protocol) |
| POWER | 1 × ATXPWR 24PIN 1 × 8PIN ATX12V |

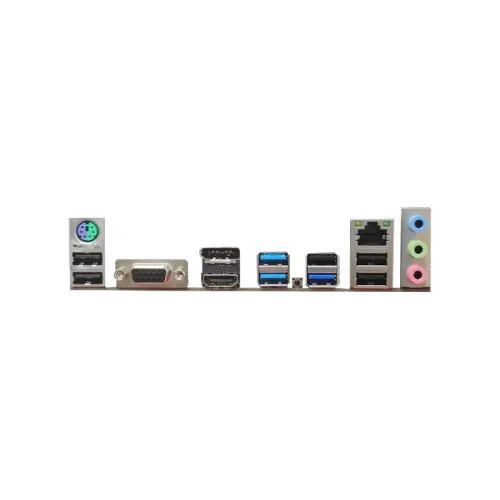

| BACK PANEL I/O PORTS | • 1 × PS/2 / USB2.0 • 1 × VGA • 1 × HDMI / DP • 4 × USB 3.2 • LAN / USB2.0 combo • Audio port • Button of clean (clear CMOS button?) |
| INTERNAL I/O PORTS | • 1 × F_USB2.0 (can spread to 2 × USB2.0) • 1 × USB3.0_1 (can spread to 2 × USB3.2) • 1 × F_AUDIO header • 1 × COM header • 1 × SPK header • 1 × CPU_FAN header • 3 × SYSFAN headers • 1 × JCMOS header • 1 × JESPI |
| OPERATING ENVIRONMENT | -20°C ~ 60°C temperature, 0–95% relative humidity, non-condensing |
| FORM FACTOR | 240mm × 190mm (W × L) |
