SPECIFICATION


AC INPUT

Model ATX 650W 80+ Bronze
Voltage 220V
Current 5A
Frequency 50Hz

DC OUTPUT

Yellow +12V  (20A)
Red +5V     (20A)
Orange +3.3V (20A)
Blue -12V    (0.5A)
Purple +5Vsb (2.0A)

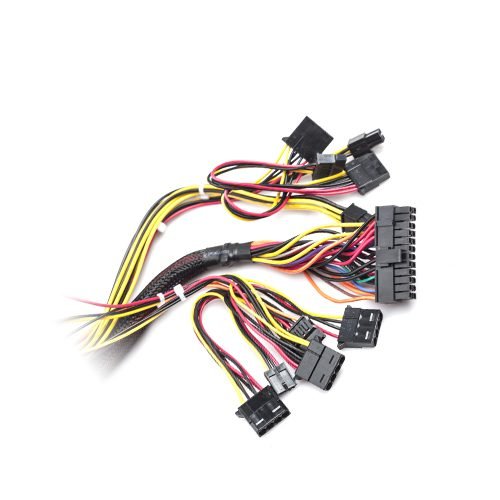

POWER CONNECTOR

Main Power (24 pin) 1
ATX 12V (4+4 pin) 1
PCI-E (6+2 pin) 1
Sata (4 pin) 5
Peripheral (4 pin) 3

80 PLUS CERTIFICATION



DOWNLOAD



Based data from
*https://www.plugloadsolutions.com/80PlusPowerSuppliesDetail.aspx?id=115&type=2
