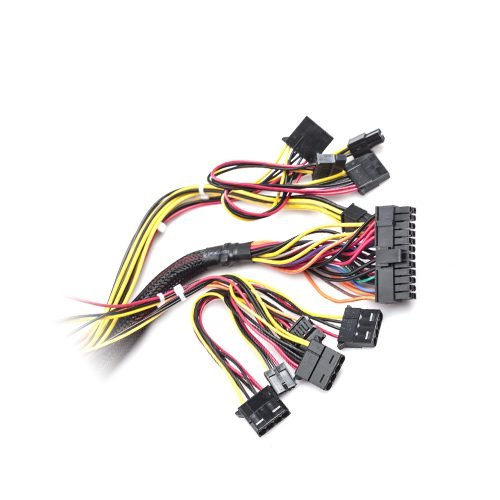

550w-80-plus-bronze-03

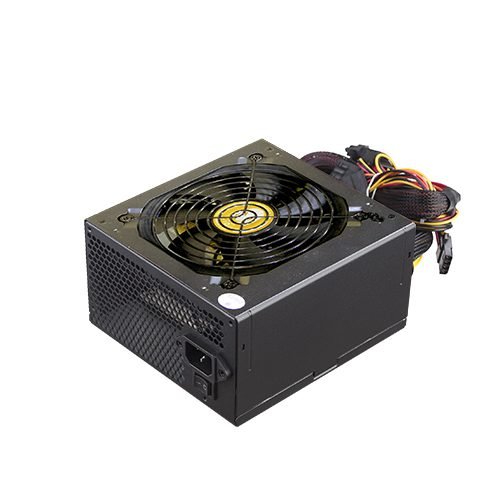

550w-80-plus-bronze-02

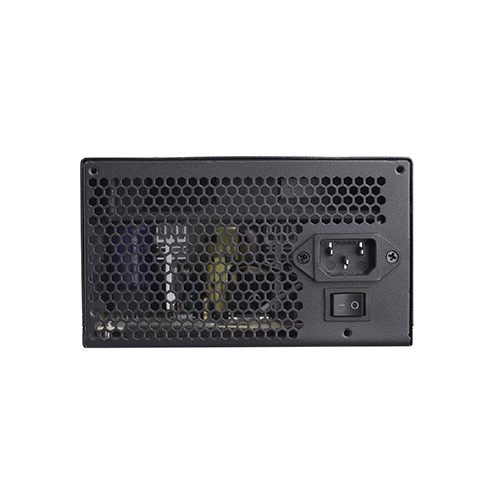

550w-80-plus-bronze-04

<!–

–>

SPECIFICATION


AC INPUT

Model ATX 550W 80+ Bronze
Voltage 220V
Current 5A
Frequency 50Hz

DC OUTPUT

Yellow +12V  (20A)
Red +5V     (15A)
Orange +3.3V (15A)
Blue -12V    (0.5A)
Purple +5Vsb (2.5A)

POWER CONNECTOR

Main Power (24 pin) 1
ATX 12V (4+4 pin) 1
PCI-E (6+2 pin) 1
Sata (4 pin) 4
Peripheral (4 pin) 2

80 PLUS CERTIFICATION

DOWNLOAD

Based data from
*https://www.plugloadsolutions.com/80PlusPowerSuppliesDetail.aspx?id=115&type=2
